- FunctionFor Air Supply or Air Return
- Surface TreatmentElectrical Deposition+ Powder Coating
- ColorWhite
- DesignSlot
- MaterialAluminum
- Duct Opening SizeWidth 4-48in; Hight 4-48in
- Extruded aluminum construction
- The directions and air volume can be adjusted by
- moving pattern controllers.
- Maximum one-piece length 78", length over 78"
- made in multiple units with keyways splices for even
- continous lengths
- Durable coating
- Available finish: White or Satin Anodized finish
-

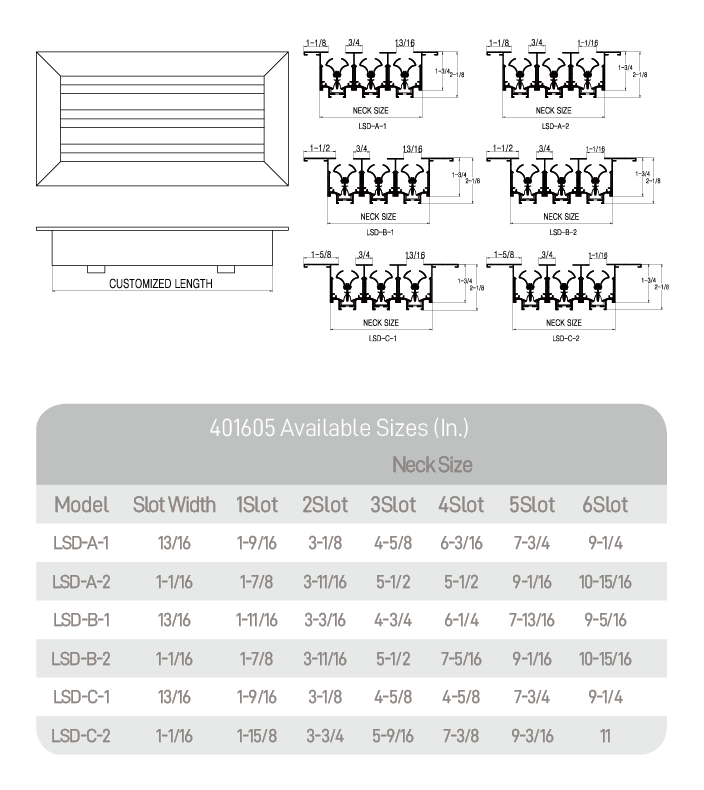

401605 Drawing
