產品名稱
401204 Aluminum Double Deflection Horizontal and Vertical Grille
產品型號
401204
參數
產品特點
下載
- FunctionFor Air Return
- Surface TreatmentElectrical Deposition+ Powder Coating
- ColorWhite
- DesignHorizontal and Vertical Grille
- MaterialAluminum
- Duct Opening SizeWidth 4-48in; Hight 4-48in
- Extruded aluminum construction
- Horizontal front bars
- Adjustable individual bars provide horizontal and vertical deflection control
- Accept model #403202 OBD damper
- Durable coating
- Available finish: White
-

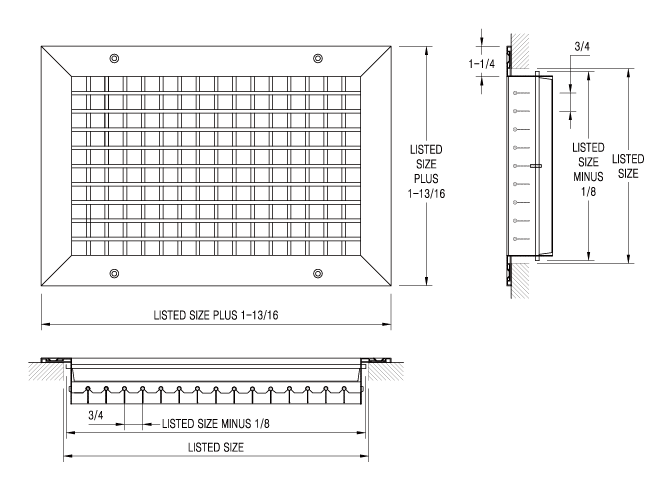

401204 Drawing
下載文件
