401603 Aluminum Double Deflection Horizontal and Vertical Grille with Damper
產品型號
401603
參數
產品特點
下載
- FunctionFor Air Supply
- Surface TreatmentElectrical Deposition+ Powder Coating
- ColorWhite
- Design Horizontal and Vertical Grille
- MaterialAluminum
- Duct Opening SizeWidth 4-48in; Hight 4-48in
- Extruded aluminum construction
- Horizontal front bars
- Adjustable individual bars provide horizontal and vertical?deflection control
- Opposed-blade damper for volume control
- Available finish: White
-

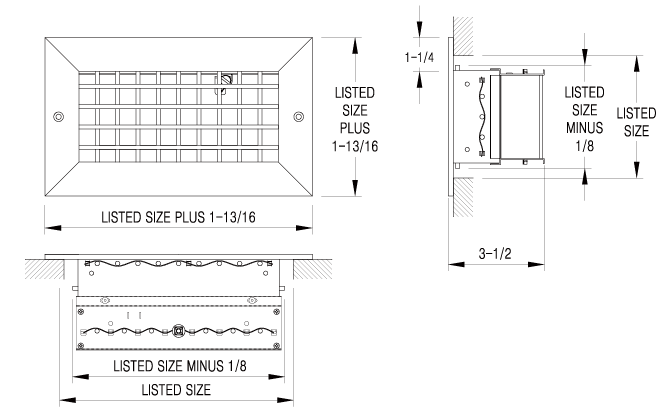

401603 Drawing
