產品名稱

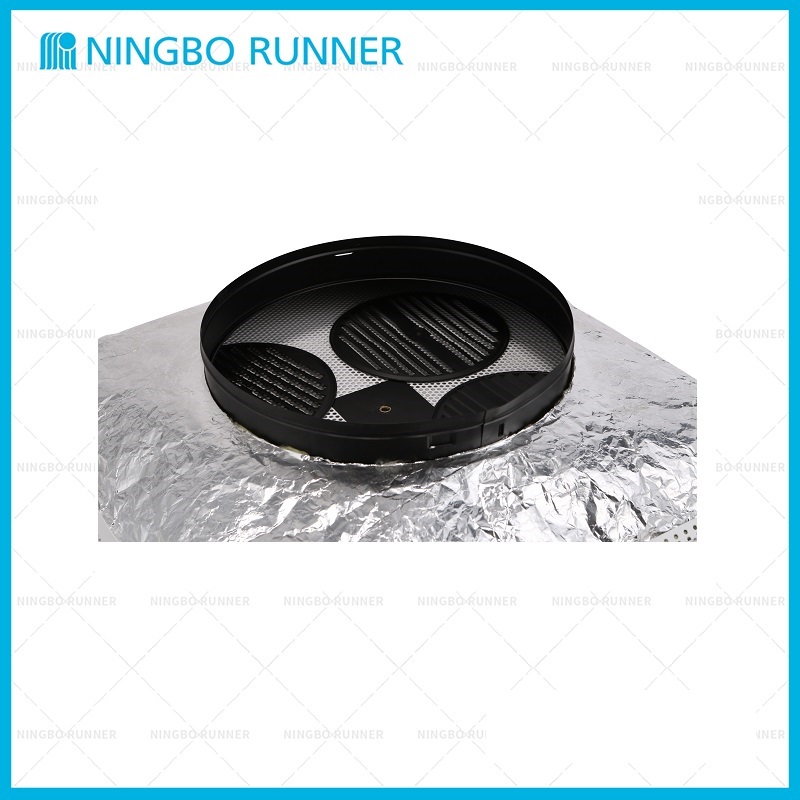

402408ADCWI T-Bar Perforated Supply Diffuser with Adjustable Deflectors Collar and Insulation

產品型號

402408ADCWI

下載鏈接

參數

產品特點

下載

FunctionFor Air Supply
Surface TreatmentElectrical Deposition+ Powder Coating
ColorWhite
DesignPerforated
MaterialSteel
Product Dimension 23-3/4'×23-3/4' (24“×24

Steel construction?
Use for T-bar ceiling ?
Perforated faceplate
Adjustable ?round deflectors
With insulation?
Formed metal back panel?
Accept model #403101 butterfly damper (6'-14')
Overall size 23-3/4'×23-3/4' (24“×24" openings)
White durable finish?

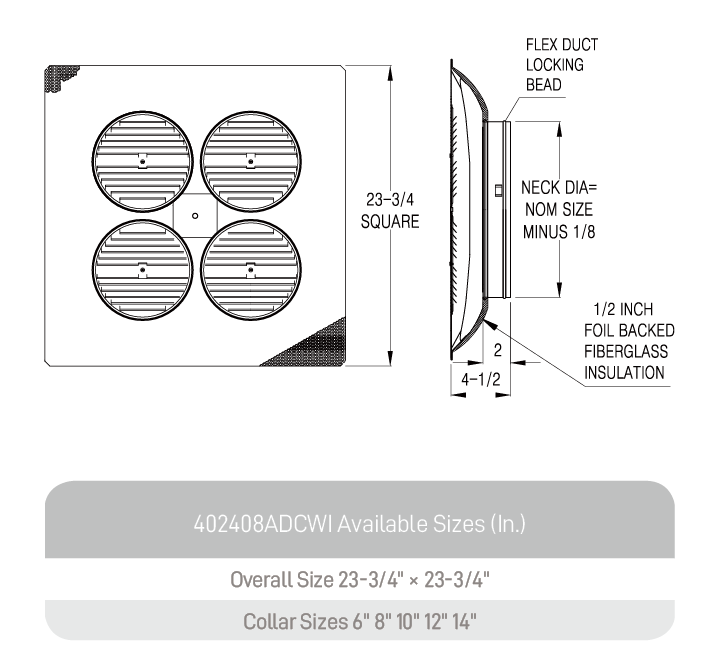

402408ADCWI Drawing 下載文件

Perforated Supplies and Returns

402408ADWI T-Bar Steel Perforated Supply Diffuser with Adjustable Deflectors and Insulation

402408ADWR6 T-Bar Steel Perforated Supply Diffuser with Adjustable Deflectors and R6 Insulation

402408ADCWR6 T-Bar Perforated Supply Diffuser with Adjustable Deflectors Collar and R6 Insulation

402409 T-Bar Steel Perforated Face Only

402409R6 T-Bar Steel Perforated Return with R6 Insulation

402211 T-Bar Steel Perforated Supply Diffuser

402408R6 T-Bar Steel Perforated Supply Diffuser with R6 Insulation

402310CI T-Bar Steel Perforated Supply Diffuser with Fixed Deflector with Collar and Insulation

402501T T-Bar Aluminum Egg Crate Filter Grille

402501R6 T-Bar Aluminum Egg Crate Filter Grille with R6 Insulation

402503 Aluminum Egg Crate Return Grille

402503R6 T-Bar Aluminum Egg Crate Return Grille with R6 Insulation

402306I T-Bar Aluminum 4-way Perforated Diffuser with Insulation

402403R6 T-Bar Aluminum 4-way Perforated Diffuser with R6 Insulation

402307C T-Bar Steel Curved Blade Perforated Supply with Collar

402308C T-Bar Steel Perforated Return with Fixed Collar

402214C T-Bar Steel Perforated Return with Fixed Collar

402411R6 T-Bar Steel Perforated Ruturn Filter Grille with R6 Insulation

402412 T-Bar Steel Perforated Ruturn Filter Grille

402408I T-Bar Steel Perforated Supply Diffuser with Fixed Deflector and Insulation

402408BPR6 T-Bar Steel Perforated Supply Diffuser with R6 Insulation

402408CI T-Bar Steel Perforated Supply Diffuser with Collar and Insulation

402408CR6 T-Bar Steel Perforated Supply Diffuser with Collar and R6 Insulation

402408ADCWI T-Bar Perforated Supply Diffuser with Adjustable Deflectors Collar and Insulation

Steel construction?

Use for T-bar ceiling ?

Perforated faceplate

Adjustable ?round deflectors

With insulation?

Formed metal back panel?

Accept model #403101 butterfly damper (6'-14')

Overall size 23-3/4'×23-3/4' (24“×24" openings)

White durable finish?
