產品名稱

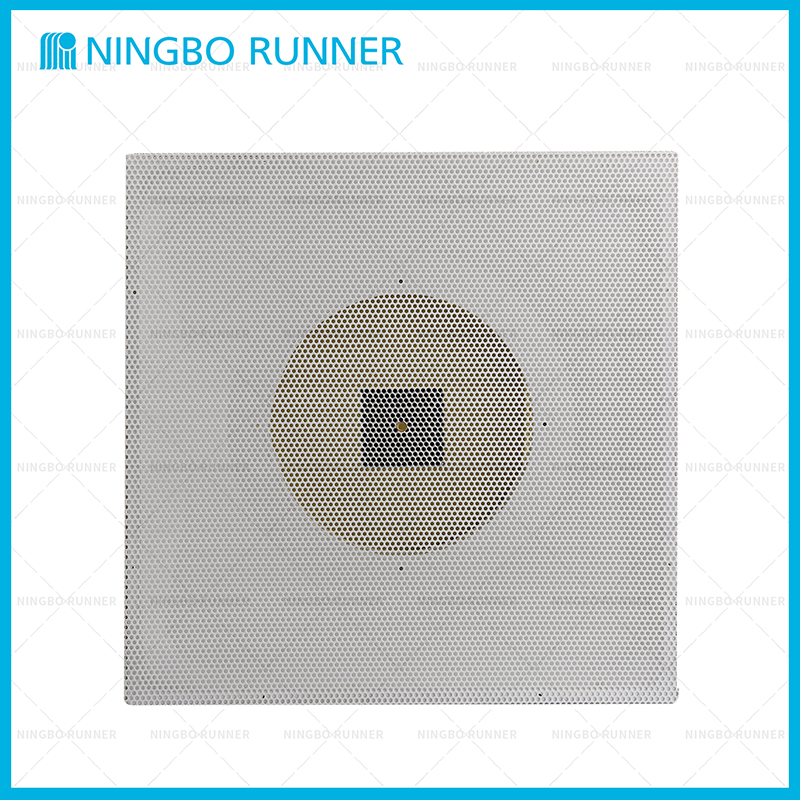

402408I T-Bar Steel Perforated Supply Diffuser with Fixed Deflector and Insulation
產品型號
402408I
參數
產品特點
下載
- FunctionFor Air Supply
- Surface TreatmentElectrical Deposition+ Powder Coating
- ColorWhite
- DesignPerforated
- MaterialSteel
- Product Dimension 23-3/4'×23-3/4' (24“×24" openings)
- Steel construction?
- Use for T-bar ceiling?
- Perforated faceplate
- Fixed deflector?
- Overall size 23-3/4'×23-3/4' (24“×24" openings)
- Accept model #403302 snap-in collar ring (6'-14')?
- With insulation
- Formed metal back panel
- White durable finish ? ? ??
-

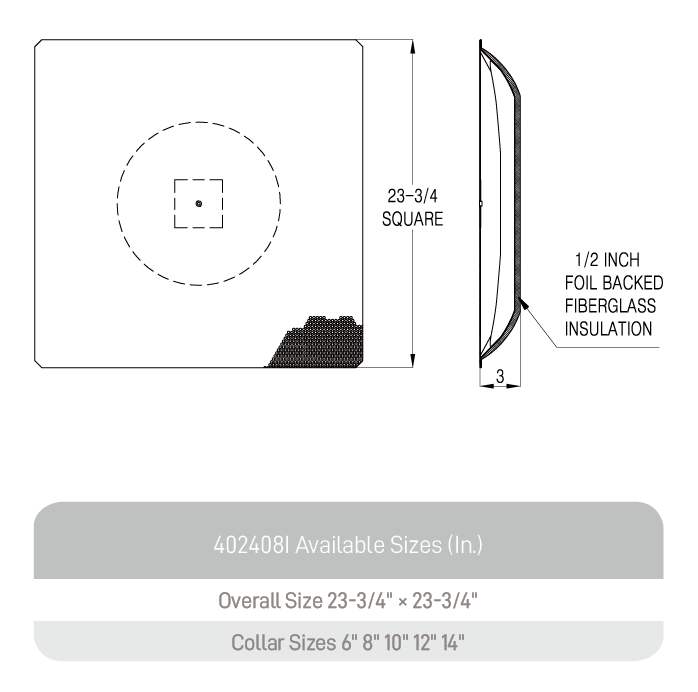

402408I Drawing
