產(chǎn)品名稱
402408CI T-Bar Steel Perforated Supply Diffuser with Collar and Insulation
產(chǎn)品型號
402408CI
參數(shù)
產(chǎn)品特點
下載
- FunctionFor Air Supply
- Surface TreatmentElectrical Deposition+ Powder Coating
- ColorWhite
- DesignPerforated
- MaterialSteel
- Product Dimension 23-3/4'×23-3/4' (24“×24" openings)
- Steel construction?
- Use for T-bar ceiling ?
- Perforated faceplate
- Fixed deflector?
- With insulation?
- Overall size 23-3/4'×23-3/4' (24“×24" openings)
- Accept model #403101 butterfly damper (6'-14')
- Formed metal back panel?
- White durable finish?
-

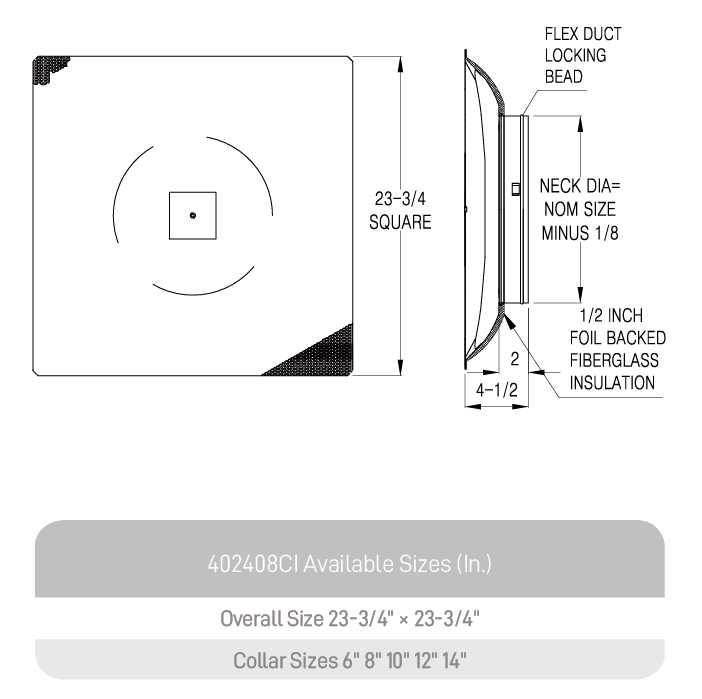

402408CI Drawing
下載文件
