產品名稱

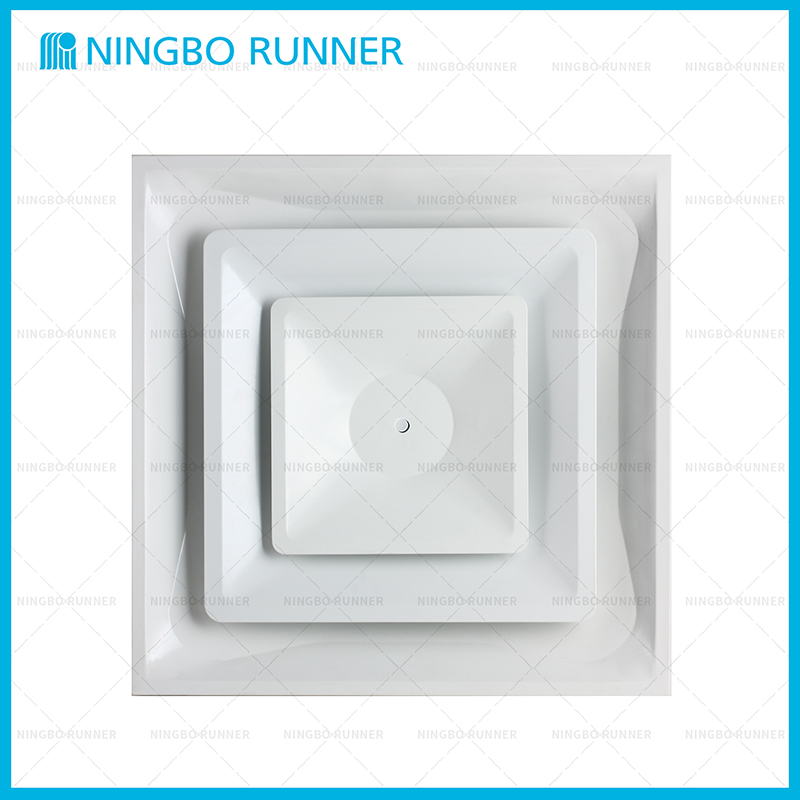

402413CR6 T-Bar Steel 2-Cone Fixed-Pattern Diffuser with Collar and R6 Insulation
產品型號
402413R6
參數
產品特點
下載
- FunctionFor Air Return
- Surface TreatmentElectrical Deposition+ Powder Coating
- ColorWhite
- Design2-Cone
- MaterialSteel
- Product Dimension23-3/4'×23-3/4' (24'×24' openings)
- Steel construction?
- Use for T-bar ceiling?
- Two-cone fixed core
- FixeAd collar 6' to 14'?
- 360-degree air diffusion?
- With R6 insulation?
- Accept model #403101 butterfly damper (6'-14')
- White durable finish
-

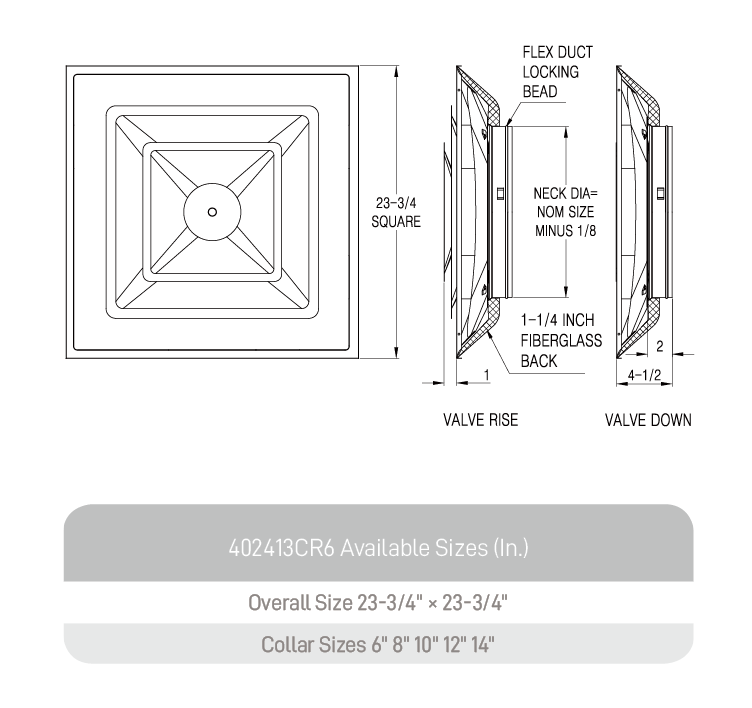

402413CR6 Drawing
下載文件
